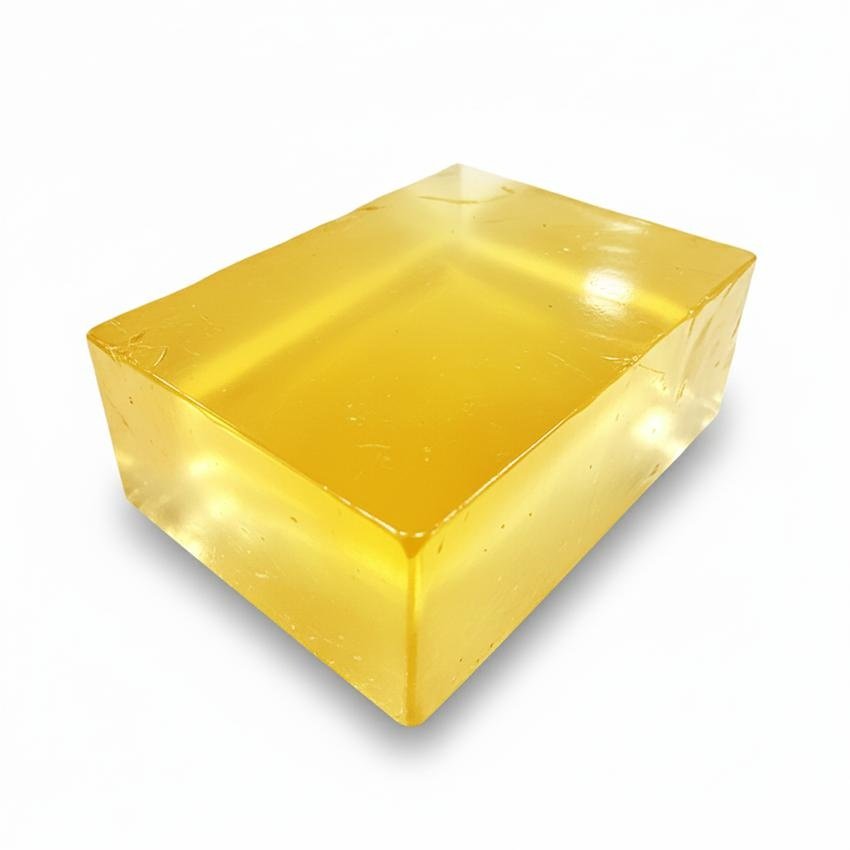

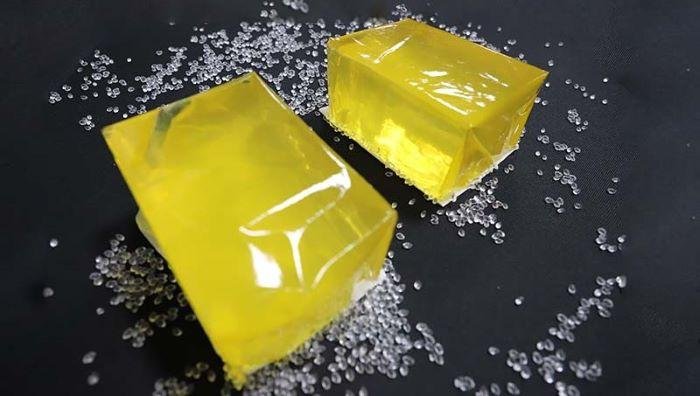

Pressure Sensitive Adhesive
Permanent and removable HMPSA grades for label and tape coating—full technical specifications, batch-tested quality and OEM formulation support.
Find the Right Adhesive for Your Needs
Failure to select the right pressure sensitive adhesive may result in insufficient adhesion, bond and/or coating issues that can interrupt production. Angmi’s hot melt PSAs are formulated to meet the requirements of customers who require a balance of tack, peel and processability. Inform us of your bonding needs, what materials you are looking for, and your production process; then we can find a solution to meet your needs, review technical data available, and determine the suitability of the product before making bulk orders.
- Bonding Performance Matching
- Production Process Compatibility
- Technical Data & Sample Evaluation
Other Hot Melt Glue Products
Available Colors
Get Detailed Advice
Pressure Sensitive Adhesive Product Range
The selection of the right pressure sensitive adhesive requires the right balance of adhesion performance and processing requirements. Initial tack, peel strength, holding power and melt viscosity are all factors to consider for hot melt pressure sensitive adhesives when deciding if an adhesive will work for your production.
Key Factors When Evaluating Pressure Sensitive Adhesives
Adhesion Performance
Test initial tack, peel adhesion and holding power for your bonding needs.
Processing Compatibility
Consider melt viscosity, application temperature and coating conditions to make sure it is compatible with your production process.
Substrate Wetting
Assess how well the adhesive contacts the bonding surfaces, as substrate characteristics can influence adhesion results.
Technical Specifications
Review documented performance data, test methods and processing recommendations before approving a product.

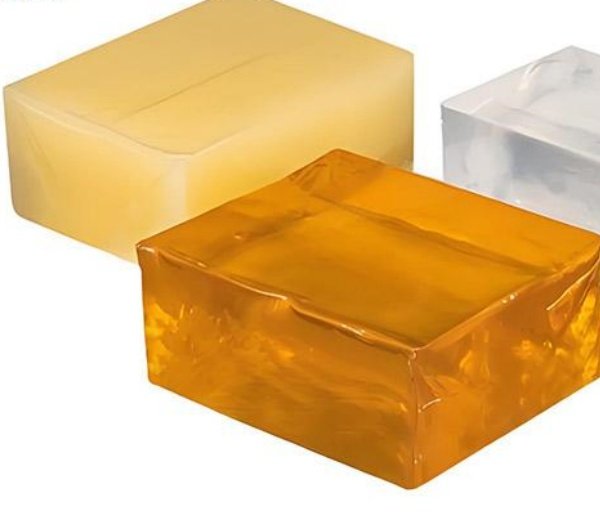

T-3388H Pressure Sensitive Adhesive
A rubber-based hot melt adhesive designed for sponge and nonwoven fabric lamination, featuring good initial tack, strong peel adhesion and low odor.
| Appearance | Yellow Transparent Solid |
| Softening Point | 85 ± 5°C |
| Processing Temperature | 150–180°C |
| Packaging | 20 kg/Carton |
Pressure Sensitive Adhesive Performance
An adhesive’s performance cannot be limited to a single parameter; therefore, the balance of adhesion, cohesive strength and processing characteristics is a factor to consider when buying. The performance data below is for our hotmelt PSA series and is presented on the basis of standard lab conditions of 23±2°C / 50±5% RH.
Initial tack is how easily an adhesive will stick to a surface. It allows buyers to assess the rate of initial bonding of the adhesive under certain conditions. A high initial tack value does not mean that the product will perform well in general; the initial tack value must be taken into account with the peel adhesion and holding power.
Peel Adhesion is the strength needed to pull apart bonded materials under specific test conditions. Our grades provide 5-20 N/25mm peel on stainless steel for standard applications and greater than 25 N/25mm for high performance grades with coating weights of 18-25 g/m² measured by 180° peel on stainless steel. The use of different substrates, adhesive layers and contact times, as well as different testing techniques, can influence the result; when comparing products, ensure that the test technique and conditions are similar.
Shear performance measures the ability of an adhesive to withstand a prolonged force. It gives details on the adhesive’s retention properties under specific conditions – in static shear testing our standard grades last for over 1,000 minutes whilst high-cohesion grades last for more than 10,000 minutes. When choosing the right product for your needs, you need to balance the tack, peel adhesion and shear performance.
Melt viscosity refers to the viscosity of an adhesive at a given temperature. It is a significant factor to consider for hot melt pressure sensitive adhesives and for assessing coating behaviour and compatibility with existing processing equipment. Melt viscosity ranges from 2,500 to 50,000 mPa·s at 170°C, with most coating grades between 5,000 and 15,000 mPa·s. Always check the viscosity values in conjunction with the test method and the temperature at which the viscosity was measured.
Applying the adhesive at the recommended temperature is important because it can affect the suitability of the adhesive for the process to be used. Depending on the formulation and equipment, our HMPSA windows are from 150°C to 190°C. Prior to changing adhesive grades, consult the appropriate processing recommendations and test for suitability.
Pressure Sensitive Adhesive Applications
There are various applications where hot melt pressure sensitive adhesives are used in bonding and coating. The suitability of the application varies with the adhesive formulation, the properties of the substrate and the production needs.
01

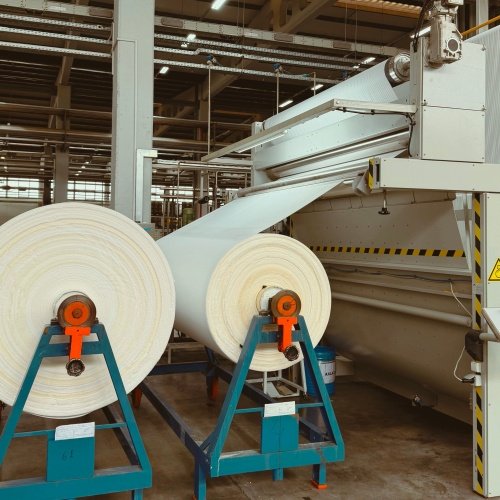

Sponge & Nonwoven Fabric Lamination
The hot melt pressure sensitive adhesives are designed to bond compatible sponge and nonwoven materials and the performance and process parameters of the adhesive are coordinated with the lamination process.
02

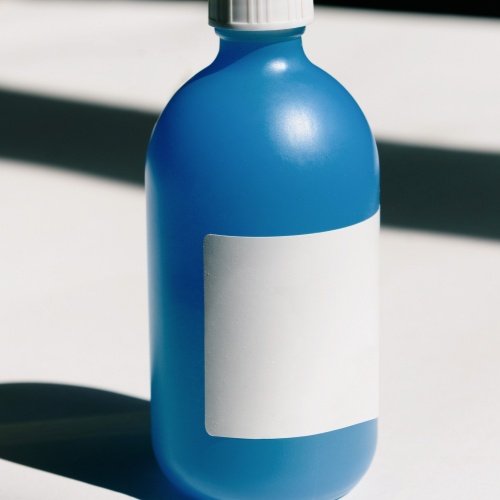

Label Coating
Label coating uses pressure sensitive adhesives to help the label adhere under pressure. The requirements for adhesion of labels will vary based on the type of label material, substrate, and conditions.
03

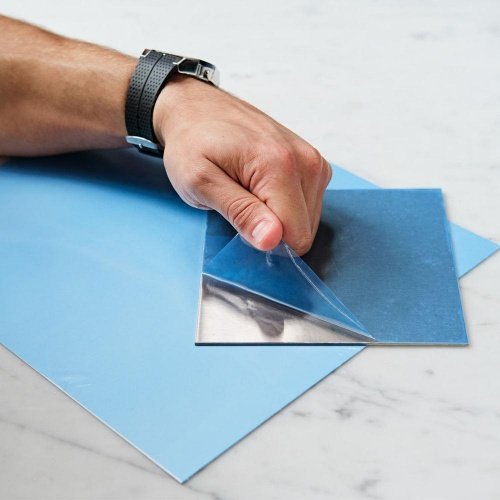

Protective Films
HMPSAs are suitable for use in protective film products which need controlled adhesion and removal properties. A formulation should be tailored to the film and surface to be treated.
04

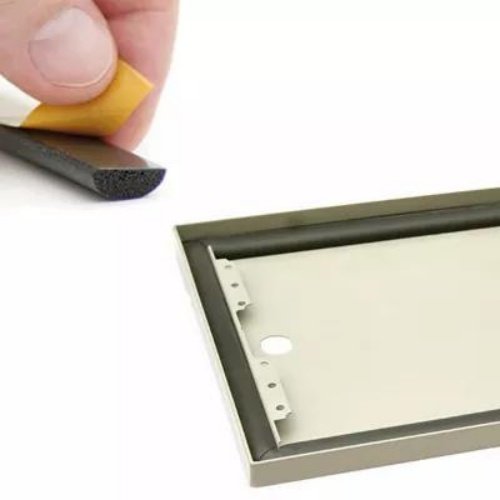

General Industrial Bonding
Specific HMPSA formulations can be used to assist in various industrial bonding applications of compatible materials, under appropriate adhesion performance and processing requirements.
Quality Control & Supply Information
When choosing a pressure sensitive adhesive supplier, buyers should look at the technical performance of the adhesive, but they should also consider other factors. Product specifications, quality requirements, packaging and supply arrangements should also be confirmed prior to the finalization of an order.
These are some of the things we suggest you discuss when you are shopping:
Request a Quote Request a QuoteSpecification Confirmation
Review the order, product and technical requirements.
Quality Inspection
Explain the applicable inspection requirements and quality documentation available.
Batch Consistency
Set up the agreed criteria for determining the consistency of production runs.
Packaging Requirements
Verify packaging options and quantities available.
Supply Arrangements
Talk about order quantity, lead-time, delivery needs and expected frequency of orders.
Technical Support, Samples & Quotation
Angmi provides customers with the evaluation of hot melt pressure sensitive adhesives according to bonding needs and production conditions. From technical documentation to sample evaluation or a quotation, our staff can help you to understand the product specifications and purchasing requirements prior to ordering.
Bonding & Processing
Requirements Please provide your substrate materials, adhesion requirements, equipment and processing conditions to help us better determine the appropriate products for your application.
Technical Documentation
Provide TDS, SDS and product specifications for technical evaluation.
Samples & Product Evaluation
Request samples to evaluate the bonding performance with your specific material and production process.
Quotation & Order Details
Just let us know your order size, packaging and delivery terms and we can discuss pricing and supply.
Do you have any technical or purchasing needs? For technical data request, samples or quotation inquiry, please contact Angmi.
Looking for a Reliable Pressure Sensitive Adhesive Supplier?
Find the right hot melt pressure sensitive adhesive for your production needs. Angmi works with you to clarify product requirements, evaluate suitability and discuss supply options to facilitate your purchasing decisions.
