Book Binding Glue Spine
The book binding glue spine is an EVA hot melt adhesive for use in commercial book production to bond the spine. It has excellent flow characteristics, good initial bond strength and excellent internal bond and low stringing under suitable application conditions.
Created for applications with various paper weights, printed paper, varnished paper and OPP-laminated to double-sided, this adhesive helps book manufacturers determine the right bonding solution for their materials and manufacturing.
Key Product Features
- Good flow properties and high initial bonding strength
- Technical support for binding machine compatibility assessment
- Flexible customization based on confirmed requirements
EVA Hot Melt Glue for Book Spine Binding
Book binding glue spine is used as a glue to attach the spine of a prepared book block in the bookbinding procedure. It is more than just about price comparison when choosing a suitable product. The adhesive must adhere to the paper materials, equipment and production environment in your production plant.
This book binding glue spine has good flow characteristics, high initial bonding strength and high internal cohesion. As a reference for suitability for a specific production line, its open time, setting time and viscosity are important factors.
Several factors can affect the final bonding result:
- Paper characteristics:Adhesive compatibility can be affected by paper weight, printing ink, surface treatment and coating.
- Spine preparation:The state of the book block’s spine is important for handing contact to the paper edges.
- Application conditions:The adhesion performance is affected by temperature, amount of adhesive and consistency of the adhesive coating.
- Production speed: Open time and behavior must be matched with the binder.
If you intend to replace your current bookbinding glue, or if you are experiencing issues such as edge lifting, unrolling, or stringing during use, please provide the specifications and processing parameters of the adhesive you are currently using. Our technical team will evaluate your requirements and determine whether the adhesive is suitable for further testing.
Discuss Your Binding Requirements→
Book Binding Glue Spine Technical Specifications
Technical specifications help purchasing teams compare adhesive products and determine whether a product should be evaluated on their production equipment. The following table summarizes the available technical data.
| Technical Parameter | Specification |
| Base Composition | EVA and Resin |
| Appearance | Light Yellow Solid |

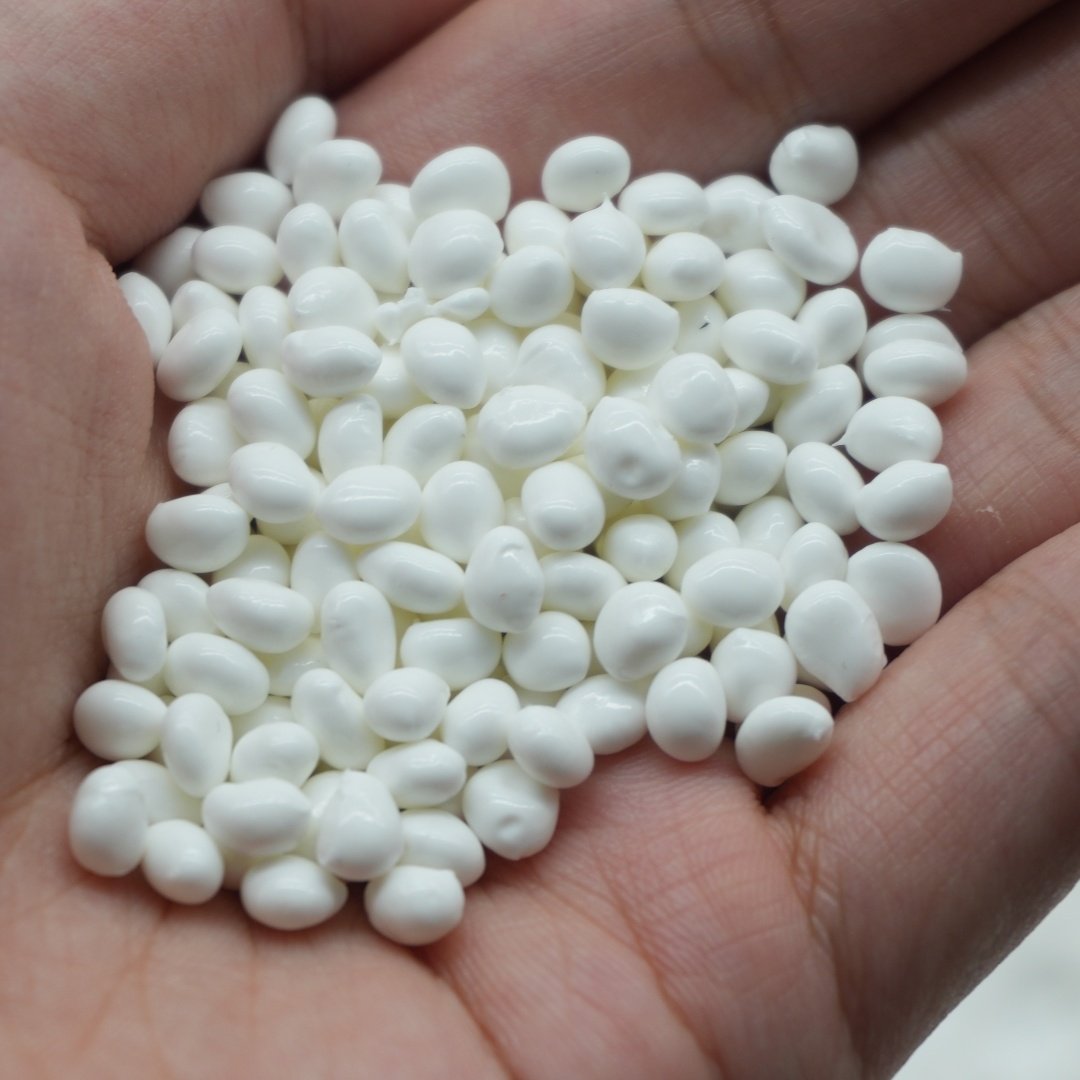

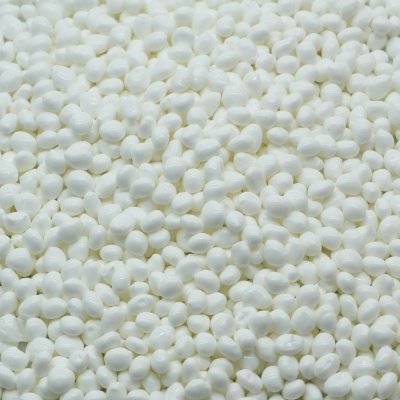

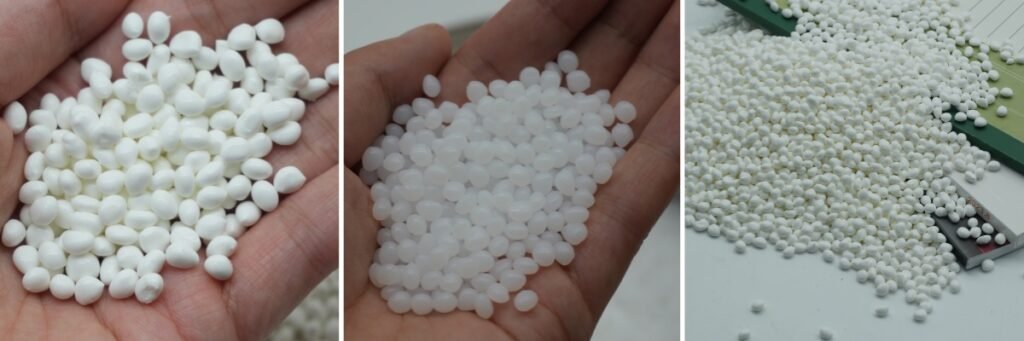

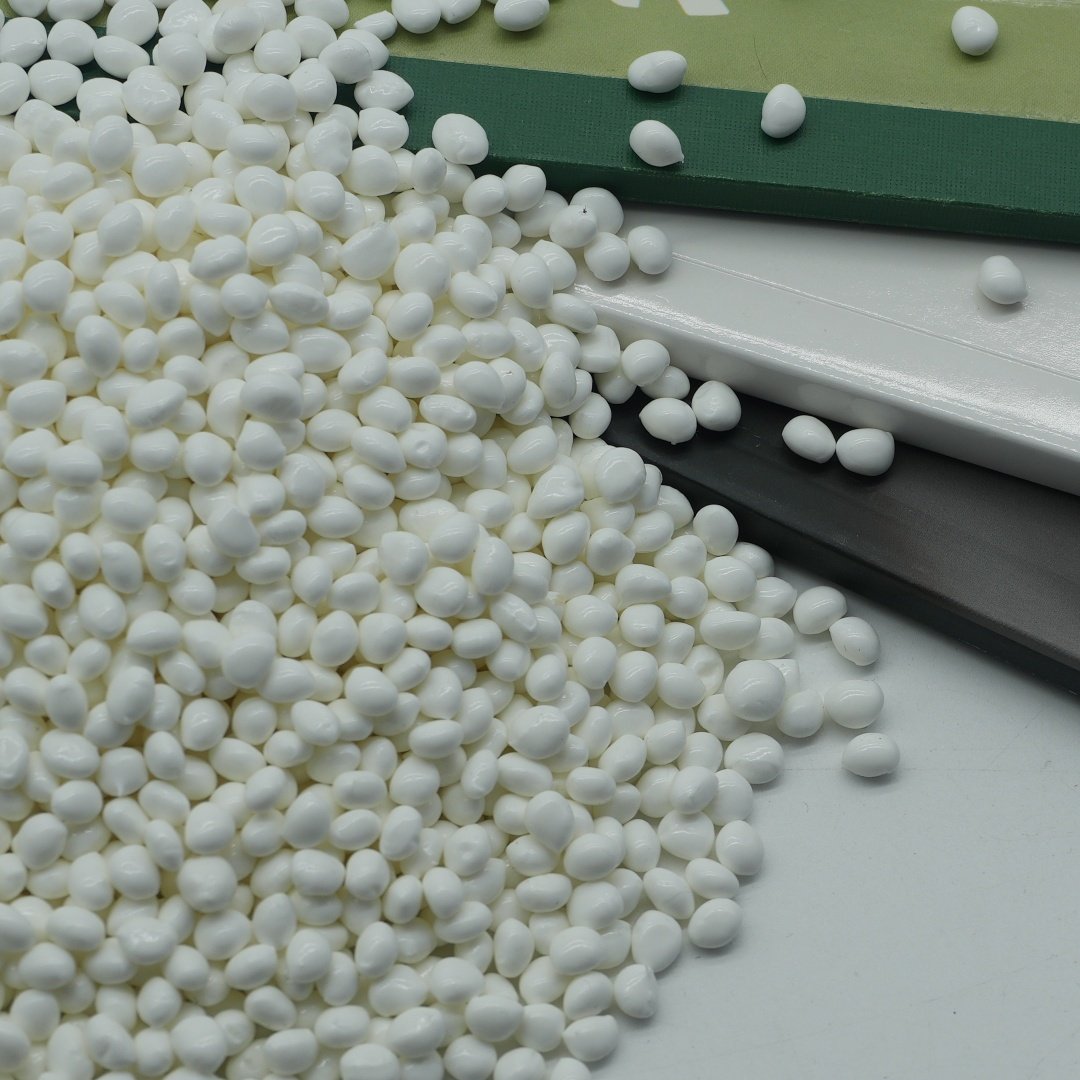

| Product Form | Granules |
| Open Time | 10–15 seconds |
| Setting Time | 5–8 seconds |
| Viscosity | 3,000 ± 500 cP at 160°C |
| Softening Point | 70 ± 5°C, Ring-and-Ball Method |
| Recommended Application Temperature | 160–180°C |
| Standard Packaging | 25 kg per bag |
| Recommended Storage Temperature | 5–35°C |
The recommended application temperature provides a starting reference for production evaluation. Actual operating conditions should be confirmed against the equipment, paper substrate and application process. The specified setting time should not automatically be interpreted as complete curing time under every production condition.
Request Technical Specifications→

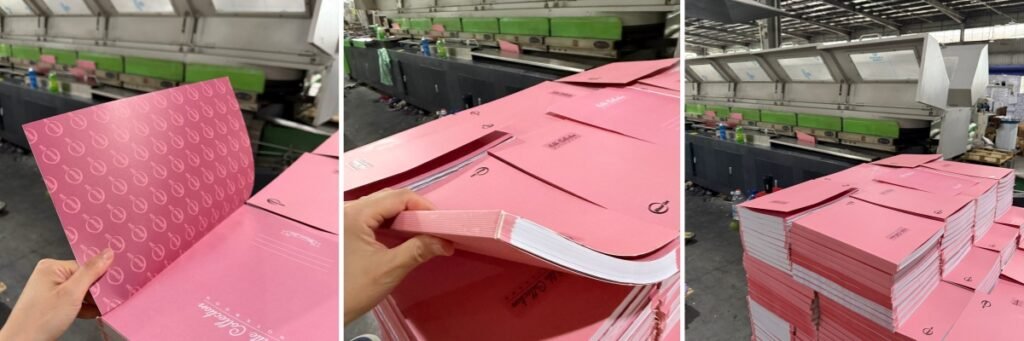

Applications of Book Binding Glue Spine
This book binding glue spine is designed to ensure excellent spine adhesion and stable application performance. Product specifications indicate that it is suitable for substrates including printed paper, varnished paper, and paper laminated with OPP film on both sides.
Printed Paper
The most frequently used printed paper is book paper, educational paper, manual paper etc. When determining the compatibility of adhesive, paper characteristics, printing ink and spine preparation are all important factors to look at.
Varnished Paper
The varnished surface may interact with the adhesive and the adhesion to the substrate may be altered. Prior to final confirmation for regular production, testing with the actual surface and paper is recommended.
Double-Sided OPP-Laminated Paper
The processes for lamination may differ from those used for uncoated paper. It is suitable for the product data, but compatibility should be checked with the laminate construction and the manufacturing process of the laminate.
Different Paper Weights
The appropriate adhesive should be evaluated against the paper materials and finished book requirements. Paper weight alone does not determine bonding performance, so substrate construction and spine preparation should also be considered.
If you use a particular paper coating or laminate, provide details of the material so our team can help assess whether sample testing is appropriate.
Check Paper Compatibility→

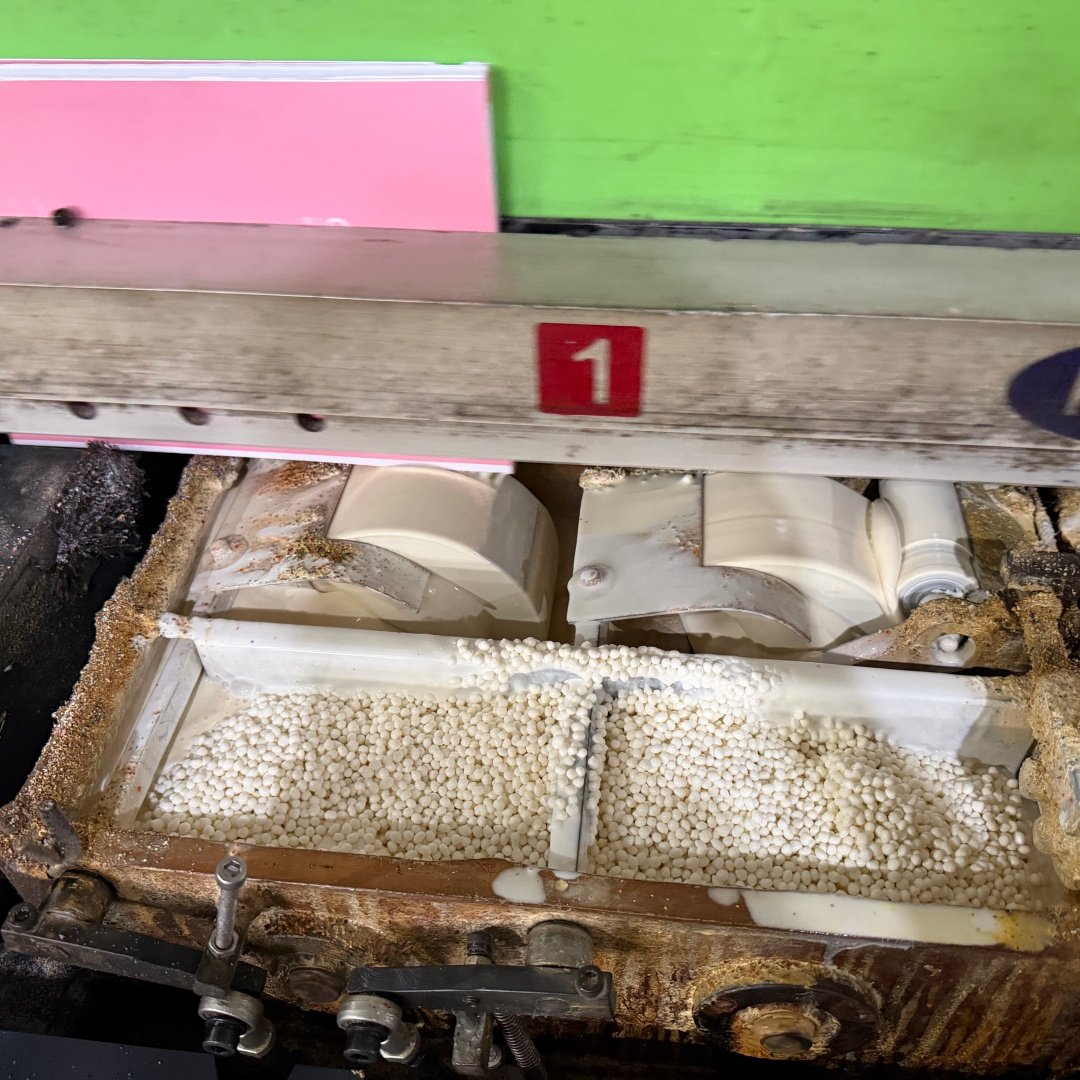

Recommended Processing Conditions and Machine Compatibility
The optimal application temperature for this book binding glue spine adhesive is 160-180°C. Processing conditions are important to ensure the adhesive flows and is applied as desired, but should be confirmed on the intended machine.
Application Temperature
Assess around the recommended temperature range. Application behavior can be influenced by machine configuration, temperature control and operating conditions.
Viscosity and Glue Application
The viscosity is specified as 3,000 ± 500 cP at 160°C, which should impact the flow of the adhesive through the application system and the resulting coating on the book spine. Verify that the application behaviour is appropriate for your machine and production process.
Open Time and Setting Time
The open time is 10-15 seconds and setting time is 5-8 seconds. The following values are useful for the buyer to judge whether or not the timing properties of the adhesive are compatible with the production process. Actual results may vary depending on temperature, paper type, amount and equipment conditions.
Technical Support for Machine Matching
Not certain if this EVA hot melt adhesive will work in your present binding machine? Our technical staff will be available to discuss your equipment and production needs prior to purchasing.
Get Machine Compatibility Support→
Minimum Order Quantity and Production Lead Time
Minimum Order Quantity: 100 kg
MOQ is suitable for customers’ needs to plan the purchase based on their production needs. A 100 kg order is 4 bags (standard packing 25 kg/bag).
If you are considering using the product for a new project, please discuss sample availability and best method for product testing with us before placing bulk orders.
Production Lead Time: 7–15 Days
Normally 7-15 days after order for production. The specific schedule will be finalized based on the order quantity, confirmed product specifications, customization and production arrangements.
Bulk Purchasing Support
In ordering a quotation, please include your anticipated order quantity, package requirements and delivery location. If customization is needed, please add these to the same enquiry and product requirements and scheduling will be reviewed.

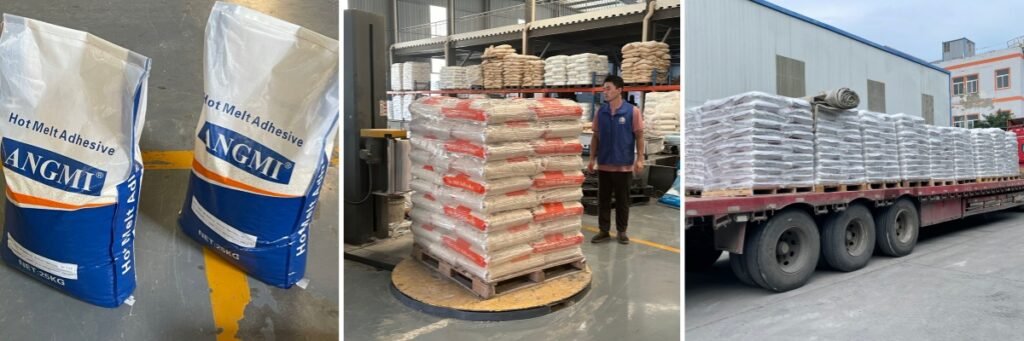

Packaging, Storage and Shelf Life

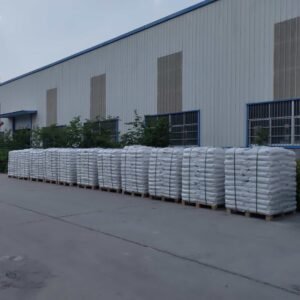

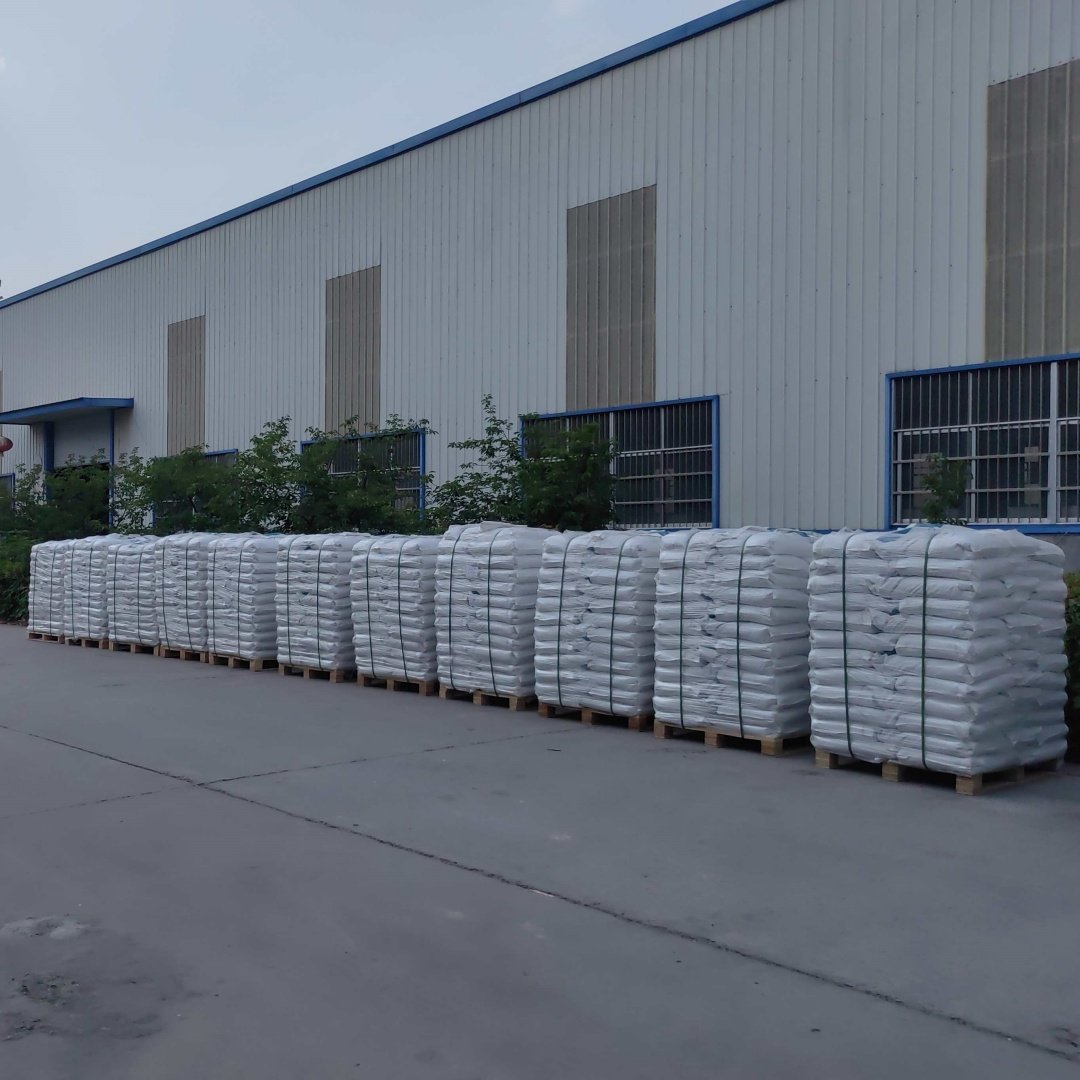

The glue comes in granules and is usually packaged in bags of 25 kg. This information enables the purchasing teams to make estimates of materials quantity, storage and inventory needs.
The recommended storage temperature is 5-35℃. Store the adhesive in a pallet on a first-in, first-out basis, in its original packaging, out of direct sunlight and high humidities. Maintain the right packaging to help prevent environmental contamination of the product.
Under specified storage conditions stated shelf life is 24 months from production date. When stocking an inventory of products, buyers should remember to consider the production dates and storage requirements when arriving and caring for products, especially when buying for continued manufacturing.
When purchasing in bulk quantities, check the packaging, quantity and delivery options before ordering.
Frequently Asked Questions
Can I request a sample before placing a bulk order?
Yeah. Call to see if samples are available and setup arrangements are available. Please test the adhesive with your own paper materials & production to confirm a bulk purchase.
Can you provide technical and safety documents for our purchasing approval?
Where applicable the documentation is available for the product. Please advise if you need any Technical Data Sheet (TDS), Safety Data Sheet (SDS/MSDS) or any other particular documents; we will confirm with you the availability.
What happens if the adhesive does not perform as expected during testing?
Share your test results, paper materials, machine settings and details of the bonding issue. Our technical team will be able to consult with you on the information and determine next steps for testing the adhesive and application conditions.
Can the agreed product specifications be confirmed before production?
Yes. Before starting production, product specifications, packaging requirements, and other details agreed upon in the order should be confirmed. This allows them to have a clear reference for any orders fulfilled and for future buying.
Request Book Binding Glue Spine Samples and Pricing
Need book binding glue spine? Technical support is provided, discussions on customisation are quite flexible, and bulk purchase is possible for applications that are suitable.
Share your paper materials, binding equipment, current bonding challenges and estimated order quantity. Our team can help determine machine compatibility, discuss your needs and provide sample testing, customization, and quotation options.
